With
the rapid development of the society, it has brought a lot of convenience, but
it also brings manyhidden threats and risks. Due to the frequent occurrence of
various types of terrorist incidents in the world, the safety of life and
property are getting more and more attention. As one of the advocates of
security, RAYS always take protecting the public safety
as its mission, to support scientific and technological innovation, with
quality products, excellent technology and professional services, to show the
world the force of “Intelligent Manufacturing” from China.

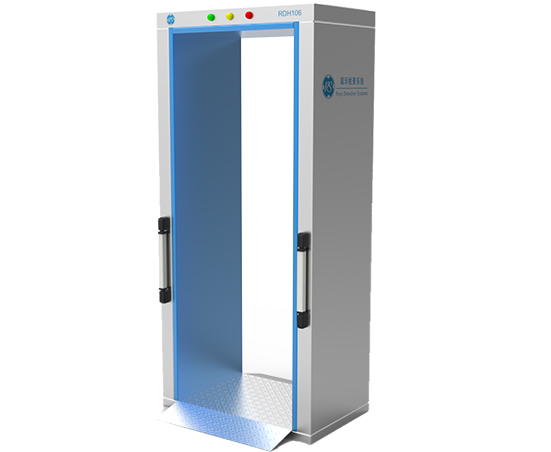

Recently, RAYS has successfully developed a new type of RDH106 Passage
Type Pedestrian & Luggage Radioactivity Monitoring System (pictured below).
Using the most advanced technology, such as digital filtering, digital pulse,
electromagnetic compatible etc. Has the advantages of faster induction, better
detection, higher sensitivity and stronger anti-interference.Can be widely applied
to the customs, quality inspection agencies, environmental protection agencies,
public places, border crossings, airports, ports, entry and exit ports,
metallurgical industry, and nuclear power plant, etc.
【Features】
⊙ Detection Area: Divided into eight longitudinal arrangement, can be
received with both sides and
accurately positioned to detect objects.
⊙ Sensitivity and False Positive Rate: Comply with the standard of
GB/T24246-2009.
⊙ Sensitivity Consistency: There is no blind area in the detection
area, uniform, better than the standard
of GB/T24246-2009.
⊙ Radionuclide Identification: The energy range of the radioactive
material can be distinguished from the
naturally occurring radioactive
materials (NORM) and special nuclear material (SNM)
⊙ Dose Rate Analysis: A rough analysis of the dose rate, can determine
the risk levels.
⊙ Overload Characteristic: >100 Sv/h will show alarm.
⊙ Other Detection Ability: Infrared ray correlation device, will
automatically track the sampling
adjustment technology, and automatically
reduce false alarm.
⊙ Alarm Sound: 2 alarm tones can be selected.
⊙ Anti-interference: Using digital filtering, digital pulse and other
advanced technology. More than one
series without interference.
⊙ Management Encryption: Set a password, only with the correct
password to be set the parameters of
the program and the
sensitivity.
⊙ Data Recovery: Can be used to restore the factory settings, such as
improper operation caused by the
loss of data, etc.
⊙ Computer Control: The parameter can be set up by the computer, and
the detection data will be
displayed.
⊙ Networking: Reserved data communication interface to connect with
the computer, and multiple
devices can be controlled by computer
⊙ Anti-impact: Not influenced by external factors, has strong
resistance to collision.
⊙ Safety: Comply with current international safety standards, using
the technology of weak magnetic
field, no damage to the pacemaker wearer,
pregnant women, CD discs, aprons, video tapes, hearing
aids,etc.
【Specification】
Working Voltage：AC 220V
Power：260W
Weight：<600KG
Working
Temperature：-20℃~+40℃
Outline
Size：2170mm(H)×990mm(W)×600mm(D)
Tunnel
Size：2000mm(H)×760mm(W)×600mm(D)
